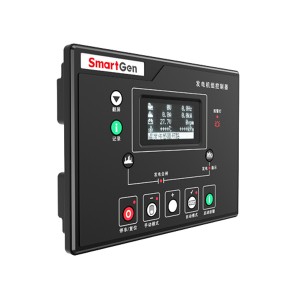

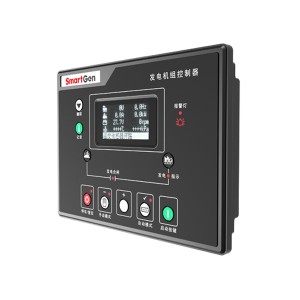

HGM8110A
|
Item number: |
HGM8110A/8120A |
|
Power supply: |
DC8-35V |
|
Product dimension: |
237*172*57(mm) |
|
Plane cutout |
214*160(mm) |
|
Operation temp |
-40 to +70 ℃ |
|
Weight: |
0.80kg |
|
Display |
VFD |
|
Operation panel |
PC |
|
Language |
Chinese & English |
|
Digital Input |
6 |
|
Relay out put |
8 |
|
Analogue input |
5 |
|
AC system |
1P2W/2P3W/3P3W/3P4W |
|
Alternator Voltage |
(15~360)V(ph-N) |
|
Alternator Frequency |
50/60Hz |
|
Monitor Interface |
RS232 |
|
Programmable Interface |
RS232/RS485 |
|
DC Supply |
DC(8～35)V |
HGM8110A/8120A genset controllers are especially designed for extremely high/low temperature environment (-40~+70)°C. The controllers can operate reliability in extreme temperature conditions with the help of VFD display and the components that resist extreme temperature. All display informations are Chinese (also can be set as English). Operation information, status information and faults information are all displayed which make commissioning convenience for factory personnel. Controller has strong ability of anti-electromagnetic interference, can be used under complex electromagnetic interference environment. Easy to maintain and upgrade due to the plug-in terminal.
HGM8110A/8120A genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and “four remote” (remote control, remote measuring, remote communication and remote regulating).
HGM8110A/8120A genset controllers adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc..Majority parameters can be configured from front panel, and all parameters can be configured by RS485 interface (or RS232) to adjust via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.
Performance and characteristics
HGM8100A series controller has two types
HGM8110A: ASM (Automatic Start Module)，used for single automation systems.
HGM8120A: AMF (Auto Mains Failure), updates based on HGM8110A, moreover, has mains electric quantity monitoring and mains/generator automatic transfer control function, especially for automatic system composed by generator and mains.
